Mini metal push button switch and compact button switch for small control panels, automotive electronics, marine control, automation equipment and power control applications. The T-C Series is designed for tight panel spaces, with 8mm and 10mm mounting sizes, 1NO contact, momentary or latching operation, solder terminals and optional pre-wired leads.
T-C Series Specifications
| Series | T-C Series |
| Mounting Size | 8mm / 10mm |
| Head Type | Flat Head / Raised Head, default Raised Head |
| Operation | Momentary / Latching |
| Contact Configuration | 1NO |
| LED Voltage | 3-6V / 12-24V / 110-230V / Custom LED Voltage |

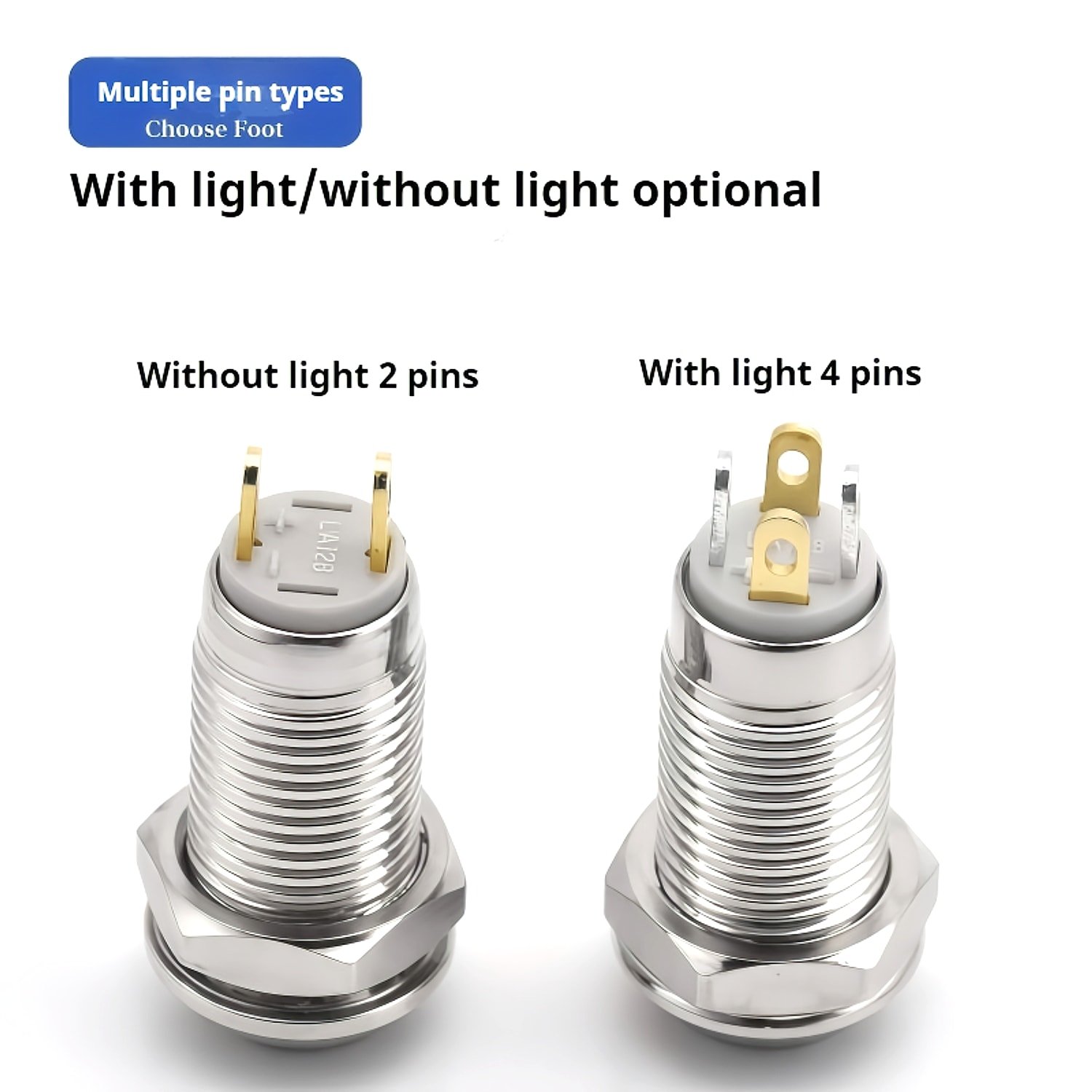

| LED Style | Ring LED / Power Symbol / Non-illuminated |
| LED Color | Red / Yellow / Blue / Green / White |
| Wiring Option | Solder Terminals / Optional Pre-wired Leads |
| Waterproof Rating | IP63 |
| Customization | Laser Engraving |
| MOQ | No MOQ, 1 piece accepted |
| Applications | Automotive, Marine, Equipment Panels, Automation Equipment, Power Control |
Electrical Specifications
| Switch Rating | 3A at ≤24V; 2A at 110-230V |
| Rated Thermal Current | Ith: 7A |
| Maximum Switching Voltage | 230V |
| Contact Resistance | ≤50mΩ |
| Dielectric Strength | AC1900V 50Hz |
Mechanical Specifications
| Mechanical Life | ≥100,000 operations |
| Operating Temperature | -25°C to +55°C |
Materials and Terminals
| Housing / Actuator | Stainless steel, nickel-plated brass |
| Base | Engineering plastic |
| Contacts | Silver alloy |
| Terminal Type | Solder terminals |

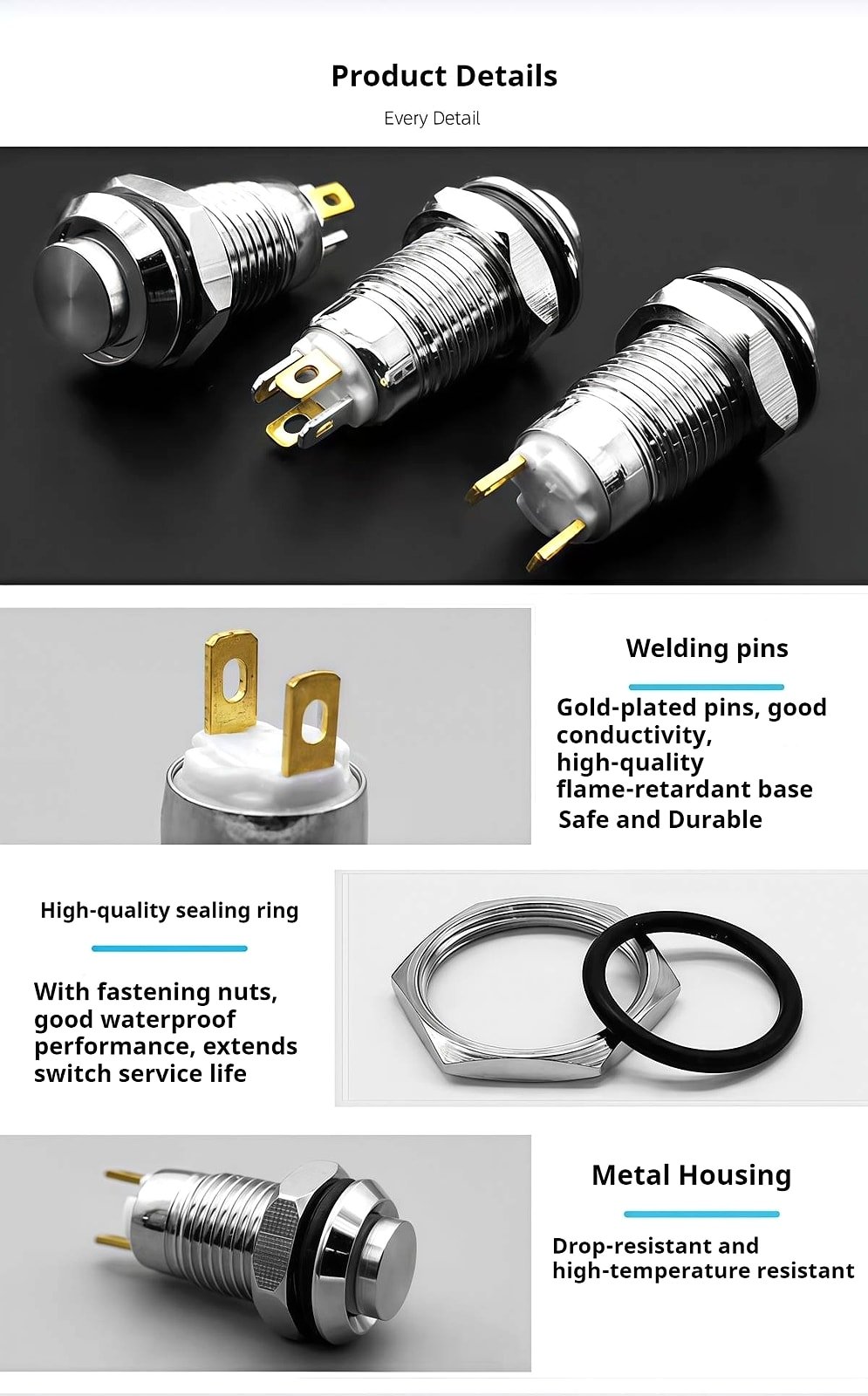

Mini 8mm 10mm Push Button Switch Design
This mini push button switch is suitable for compact panels where standard 16mm or 19mm switches are too large. Buyers can choose flat head or raised head, illuminated or non-illuminated style, and momentary or latching operation for different on off switch control needs.

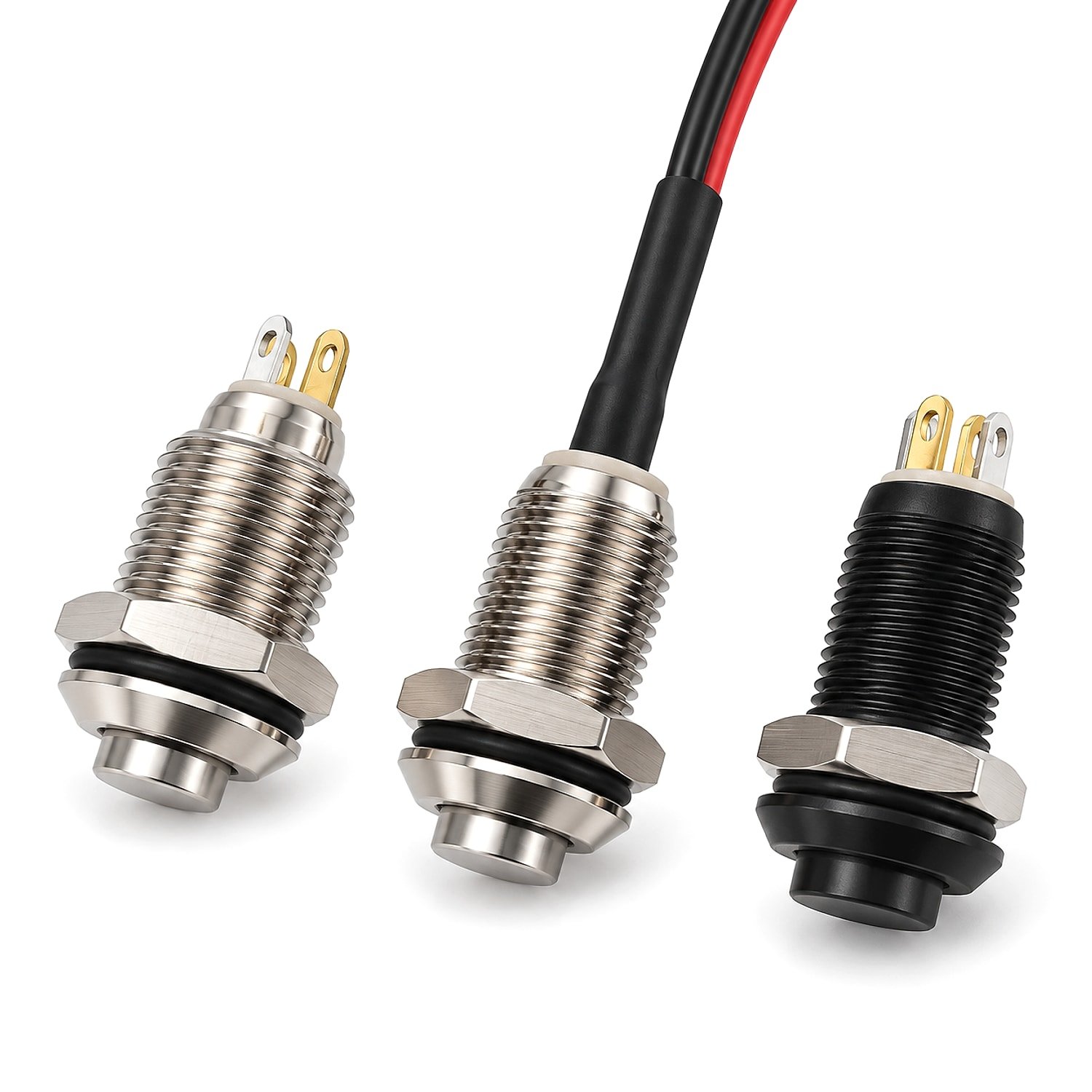

Solder Terminal and Optional Pre-wired Leads

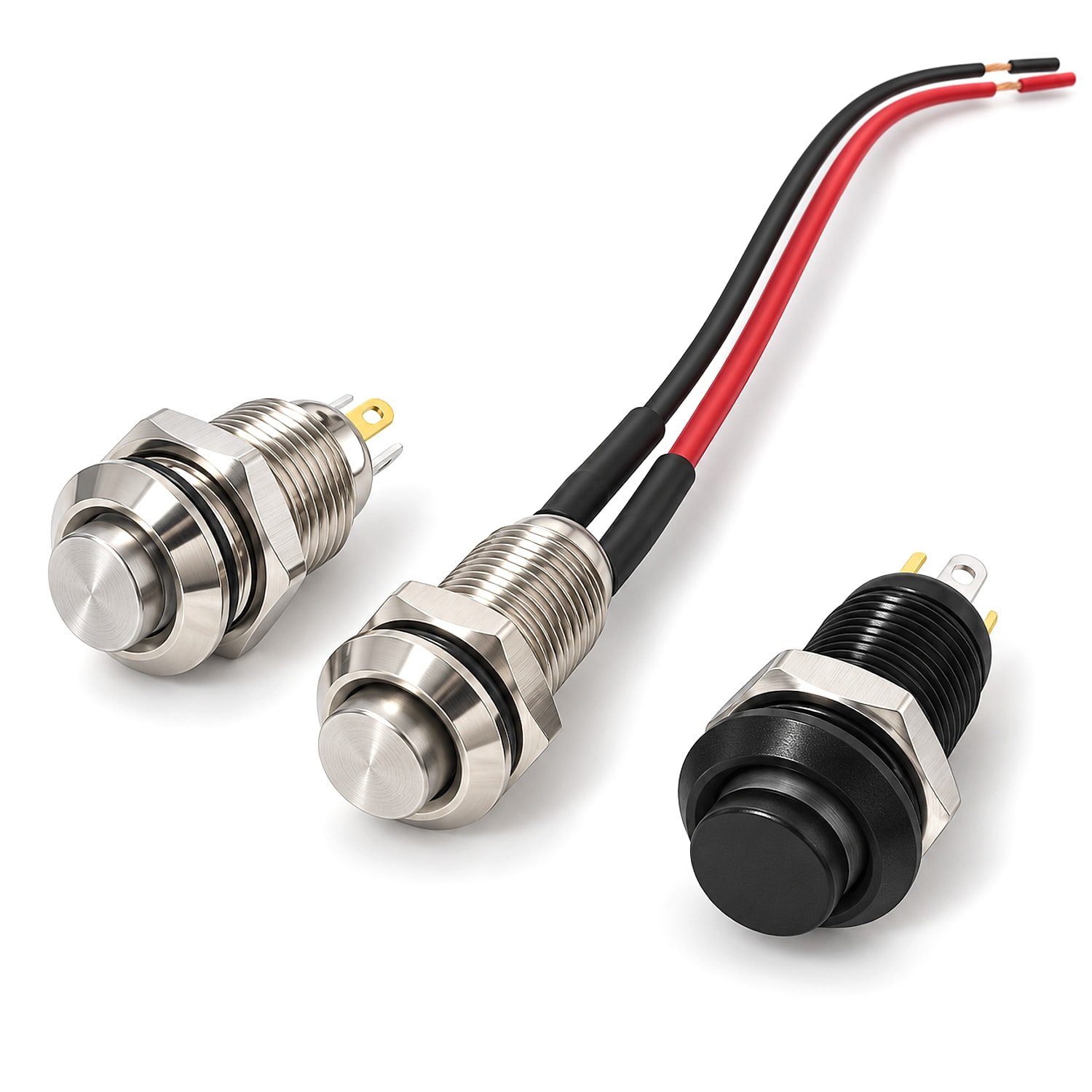

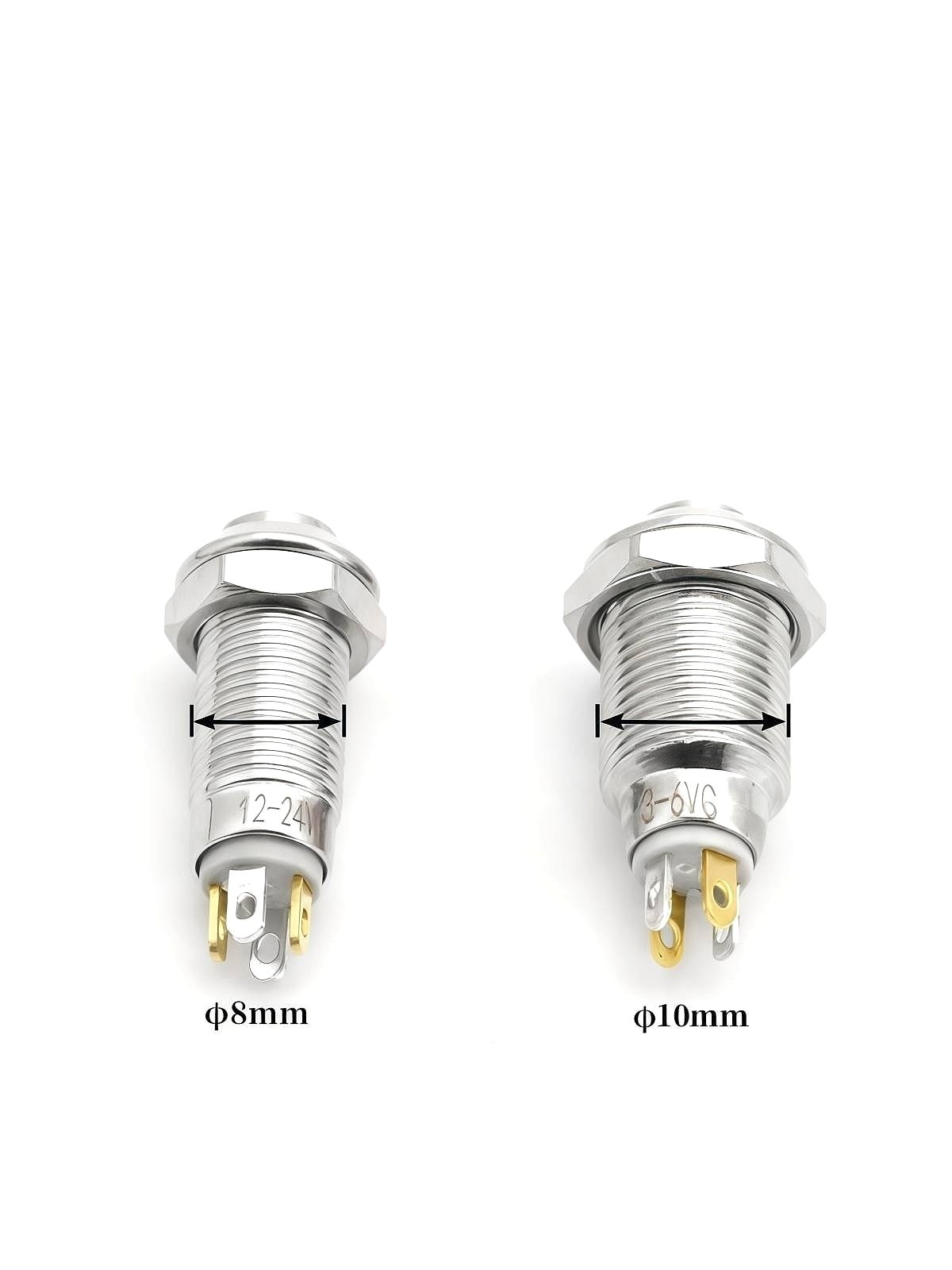

The T-C Series uses solder terminals as the standard terminal type. Optional pre-wired leads can be supplied for easier installation, small-batch projects and faster panel assembly.

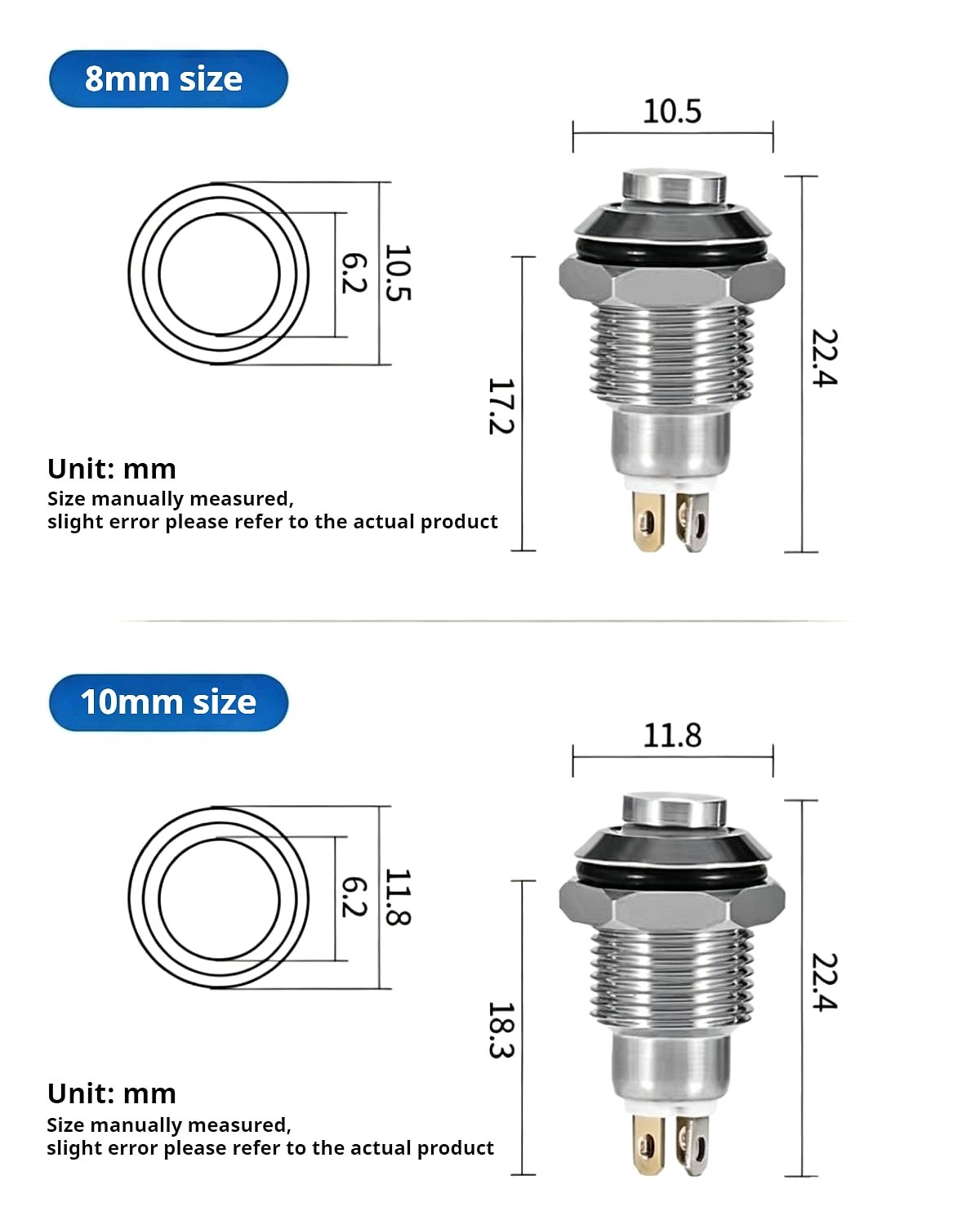

T-C Series Dimensions
The 8mm and 10mm mounting sizes are suitable for small equipment panels, handheld devices, automotive accessories and compact power control boxes.
Wiring Diagram

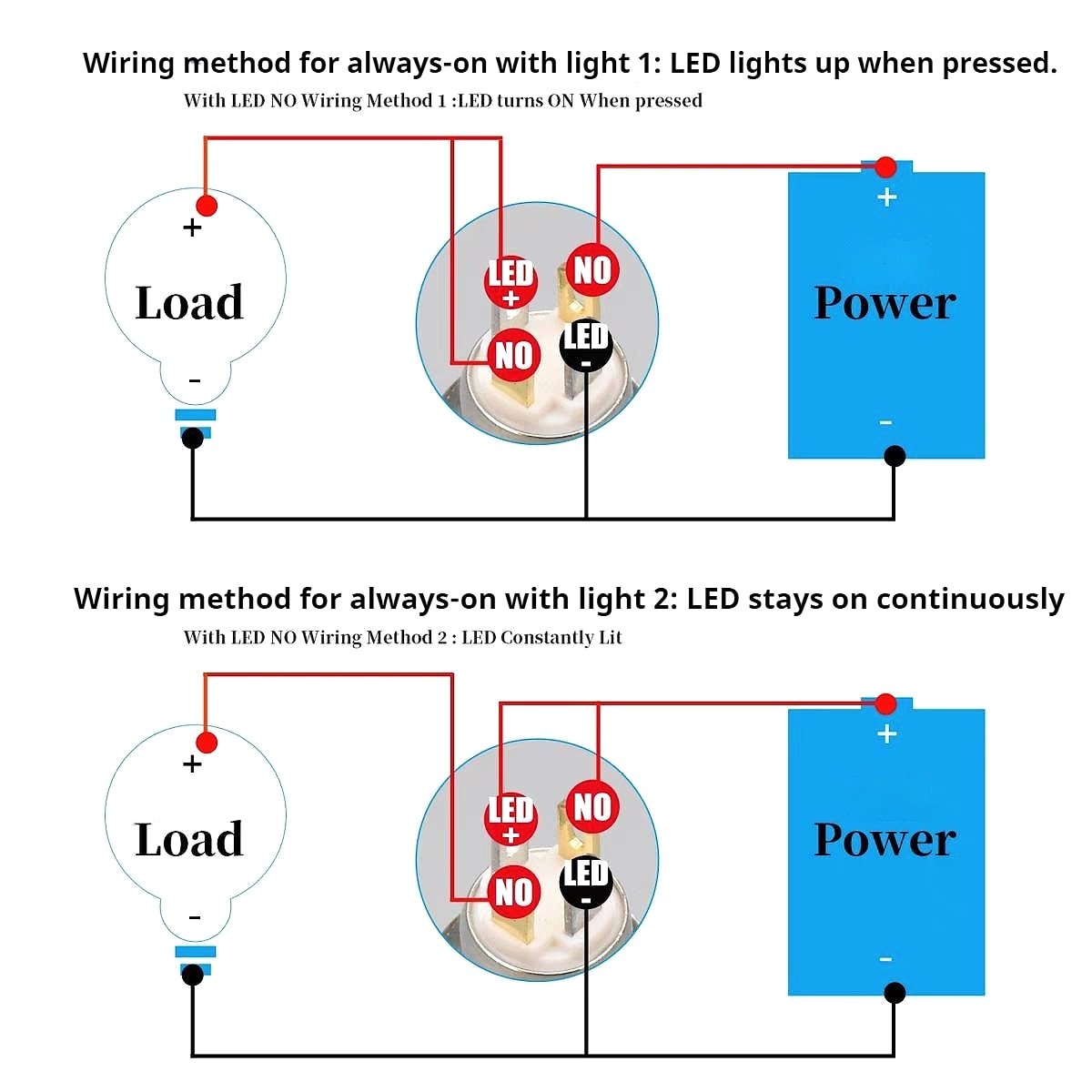

This 1NO mini button switch can be wired for common control circuits. LED versions support 3-6V, 12-24V, 110-230V and custom LED voltage ranges according to project requirements.
FAQ
What is the main advantage of this mini metal push button switch?
The main advantage is its small 8mm and 10mm mounting size, which is useful for compact panels and limited installation spaces.
Does this button switch support momentary and latching operation?
Yes. Momentary and latching versions are available.
What contact configuration does this switch use?
It uses 1NO contact configuration.
Can this switch be supplied with wires?
Yes. The standard version uses solder terminals, and optional pre-wired leads can be supplied.
Which LED colors are available?
Red, yellow, blue, green and white LED colors are available.
