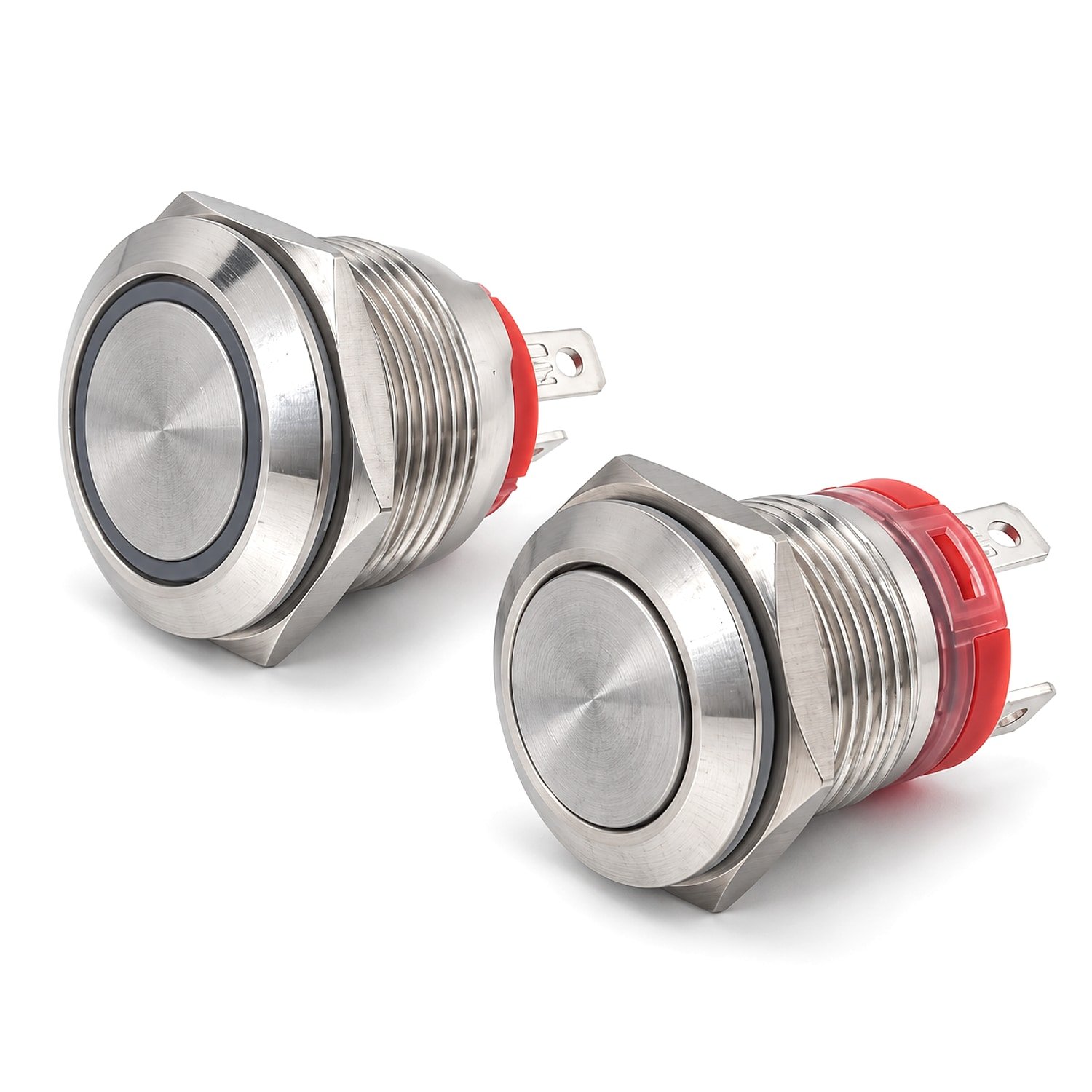

Short body metal push button switch for compact control panels, automotive controls, marine dashboards, automation equipment and power control applications. The C5 Series supports 16mm, 19mm and 22mm mounting sizes, 1NO contact, momentary or latching operation, LED and non-illuminated button switch options, solder terminals and optional pre-wired leads.
C5 Series Specifications
| Series | C5 Series |
| Mounting Size | 16mm / 19mm / 22mm |
| Head Type | Flat Head / Raised Head, default Flat Head |
| Operation | Momentary / Latching |
| Contact Configuration | 1NO |
| LED Voltage | 3-6V / 12-24V / 110-230V / Custom LED Voltage |
| LED Style | Ring LED / Power Symbol / Non-illuminated / Custom Icon |
| LED Color | Red / Yellow / Blue / Green / White |
| Wiring Option | Solder Terminals / Optional Pre-wired Leads |
| Waterproof Rating | IP63 |
| Customization | Laser Engraving / Non-translucent Printed Custom Icons |
| MOQ | 10 pcs |
| Applications | Automotive, Marine, Equipment Panels, Automation Equipment, Power Control |
LED Color Options
Electrical Specifications
| Switch Rating | 7A at ≤24V; 5A at 110-230V |
| Maximum Switching Voltage | 230V |
Mechanical Specifications
| Operating Temperature | -25°C to +55°C |
Materials and Terminals

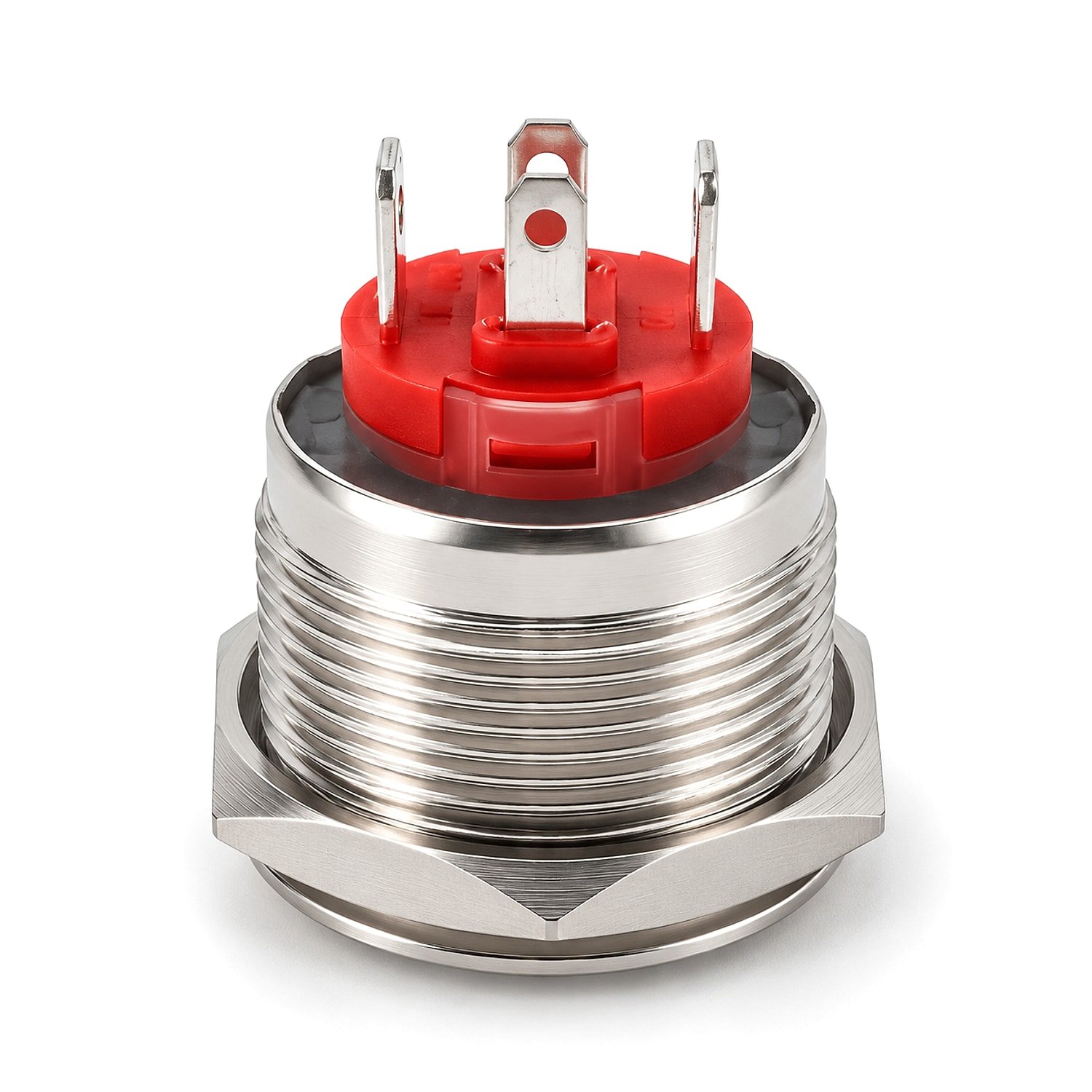

| Housing / Actuator | Stainless steel, nickel-plated brass, black anodized housing |
| Base | Engineering plastic |
| Contacts | Silver alloy |
| Terminal Type | Solder terminals, optional socket |

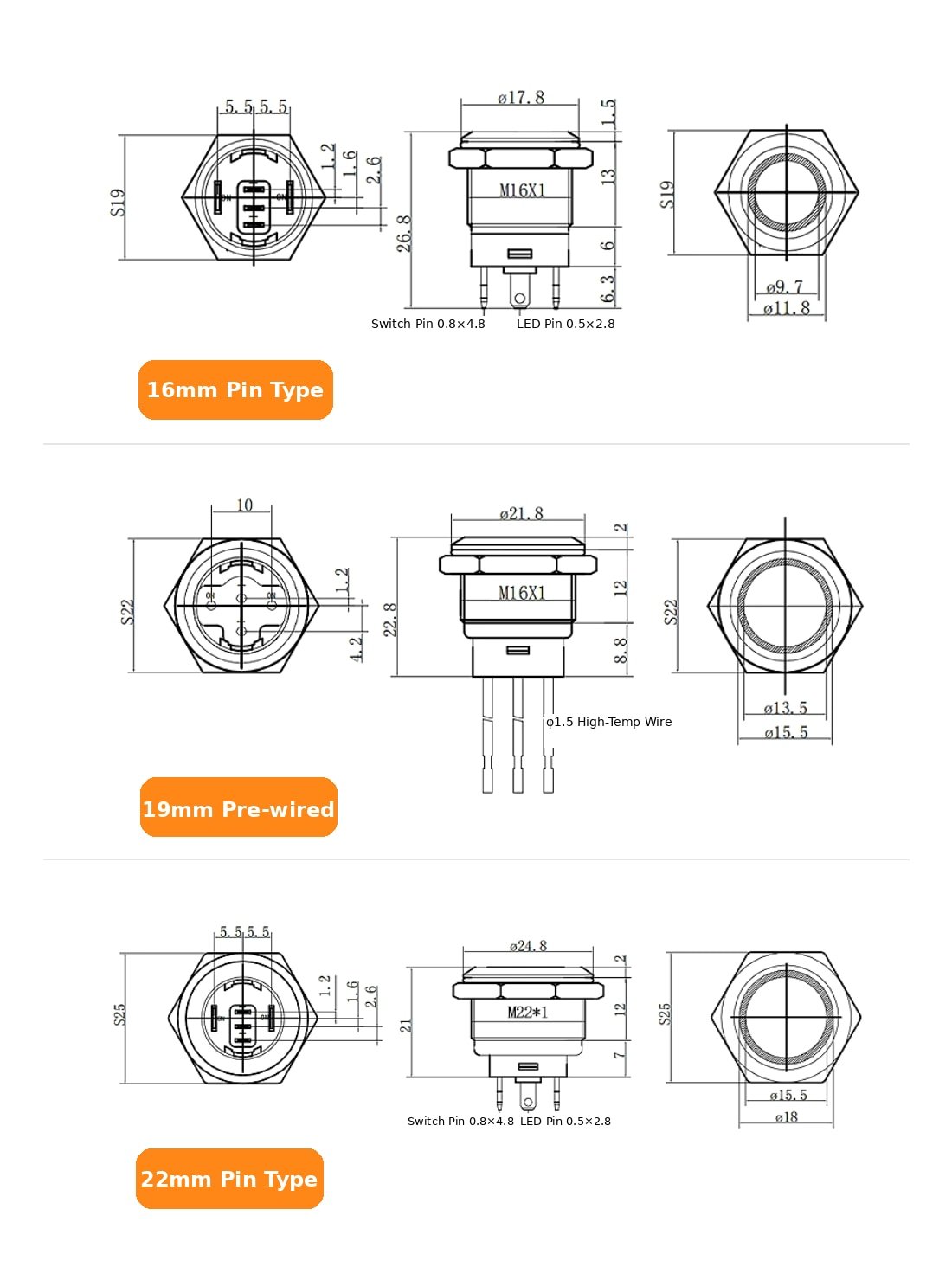

C5 Series Dimensions
The C5 short body button switch is available in 16mm, 19mm and 22mm mounting sizes for compact panels and limited-depth installation spaces.

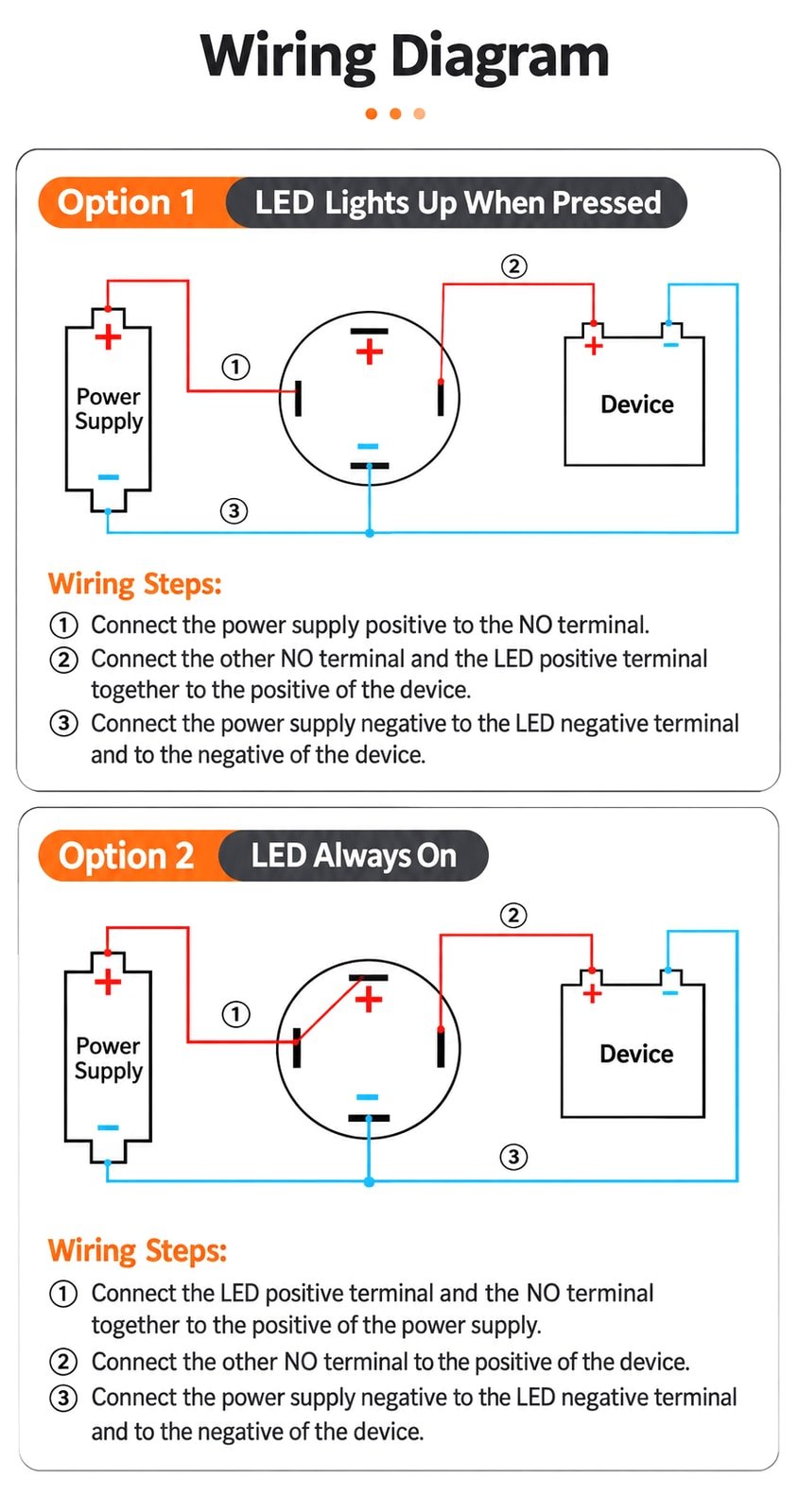

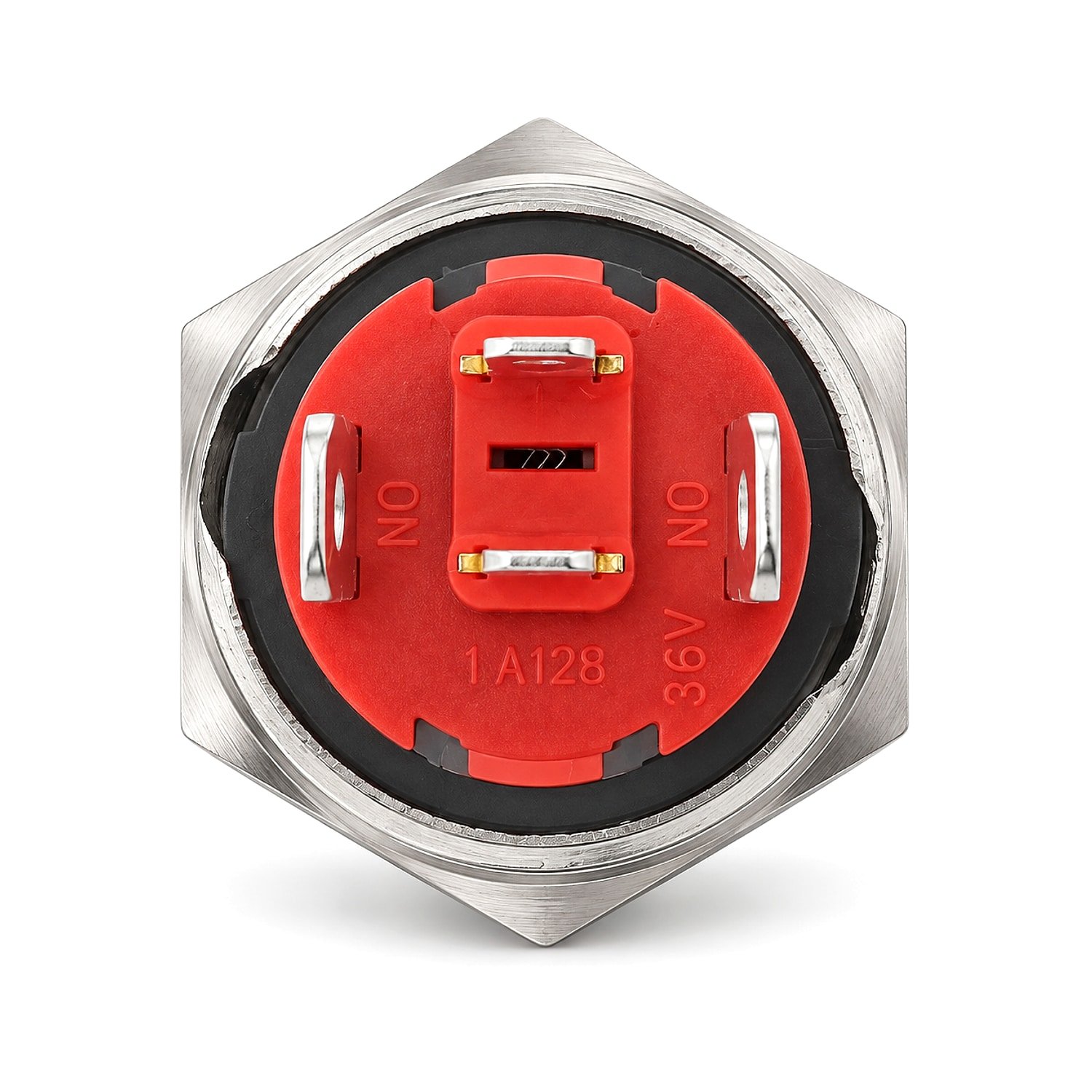

C5 Series Wiring Diagram
This 1NO push button switch supports solder terminal wiring, with optional socket or pre-wired lead service for equipment manufacturers and panel assembly projects.
Custom Metal Push Button Switch Options
TECHESS supports custom laser engraving, printed custom icons, non-translucent printed symbols, custom LED voltage, optional pre-wired leads and optional socket solutions for OEM projects and distributor supply.
Available configurations include ring LED, power symbol, non-illuminated style, stainless steel finish, black anodized housing, flat head and raised head button switch options.
