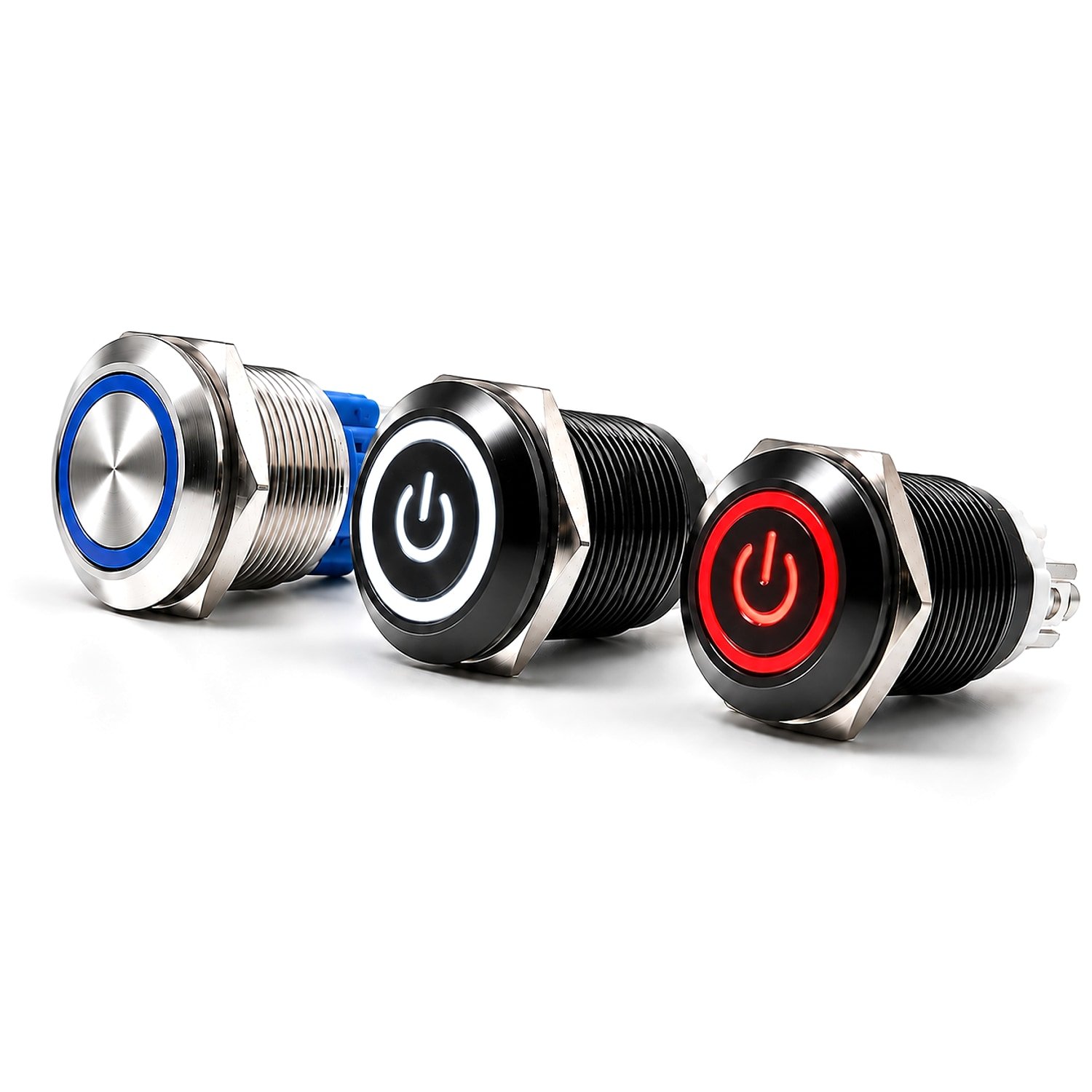

Screw terminal metal push button switch for industrial equipment panels, automotive controls, marine dashboards, automation systems and power control applications. The T-LSJ Series covers 12mm, 16mm, 19mm and 22mm mounting sizes, with momentary or latching operation, 1NO + 1NC contact configuration, LED options and secure screw terminal wiring.
Screw Terminal Metal Push Button Switch Specifications
| Series | T-LSJ Series |
| Mounting Size | 12mm / 16mm / 19mm / 22mm |
| Head Type | Flat Head / Raised Head |
| Operation | Momentary / Latching |
| Contact Configuration | 1NO + 1NC |
| LED Voltage | 3-6V / 12-24V / 110-230V / Custom LED Voltage |
| LED Style | Ring LED / Power Symbol / Non-illuminated |
| LED Color | Red / Yellow / Blue / Green / White |
| Wiring Option | Screw Terminal Wiring |
| Waterproof Rating | IP63 |
| Customization | Laser Engraving |
| MOQ | No MOQ, 1 piece accepted |
| Applications | Automotive, Marine, Equipment Panels, Automation Equipment, Power Control |
Electrical Specifications
| Switch Rating | 5A at ≤24V; 3A at 110-230V |
| Maximum Switching Voltage | 230V |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥1000MΩ |
| Dielectric Strength | 2000VAC |
| Electrical Life | ≥200,000 operations |
Mechanical Specifications
| Mechanical Life | ≥1,000,000 operations |
| Operating Force | ≤4N |
| Operating Travel | ≤2mm |
| Nut Tightening Torque | 5-14N·m |
| Operating Temperature | -20°C to +55°C |
Materials and Terminals
| Housing / Actuator | Stainless steel, nickel-plated brass, or anodized aluminum alloy |
| Base | Engineering plastic |
| Contacts | Silver alloy |
| Terminal Type | Screw Terminals |
T-LSJ Series Dimensions
Dimension drawings help engineers choose the correct push button switch size for metal panels and compact control boxes.
Screw Terminal Wiring Diagram
This screw terminal button switch is designed for secure field wiring and maintenance. Please match the selected LED voltage, load and contact configuration before installation.
Custom Metal Push Button Switch Options
TECHESS supports custom laser engraving for icons, symbols and panel markings. OEM and distributor supply is available for screw terminal metal push button switches, with sample orders accepted before bulk purchasing.
FAQ
What terminal type does this push button switch use?
This series uses screw terminals for secure field wiring.
What mounting sizes are available?
12mm, 16mm, 19mm and 22mm mounting sizes are available.
Can the button surface be customized?
Yes. Laser engraving is available for custom symbols, icons and markings.
Is there a minimum order quantity?
No. One piece is accepted for sample testing.
